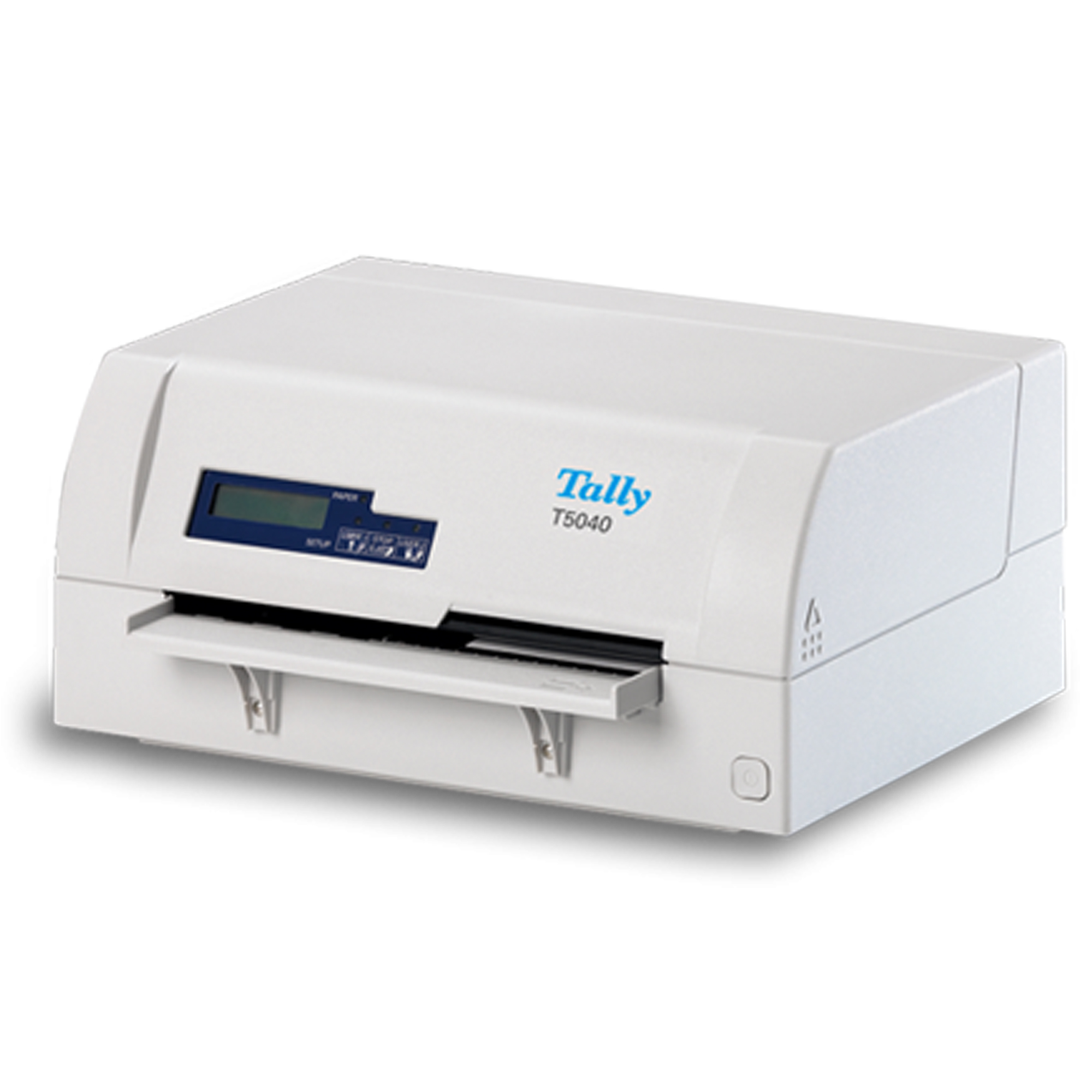

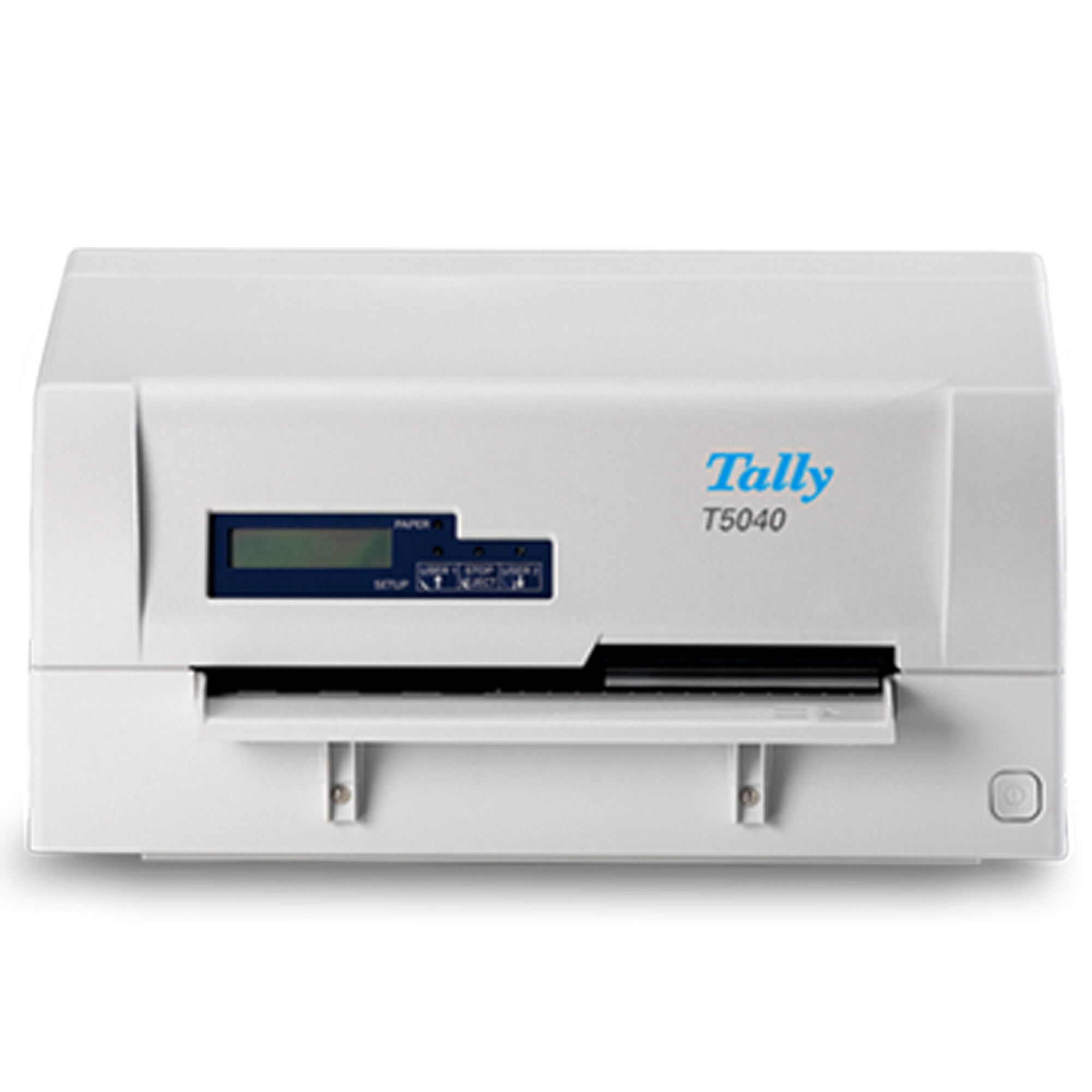

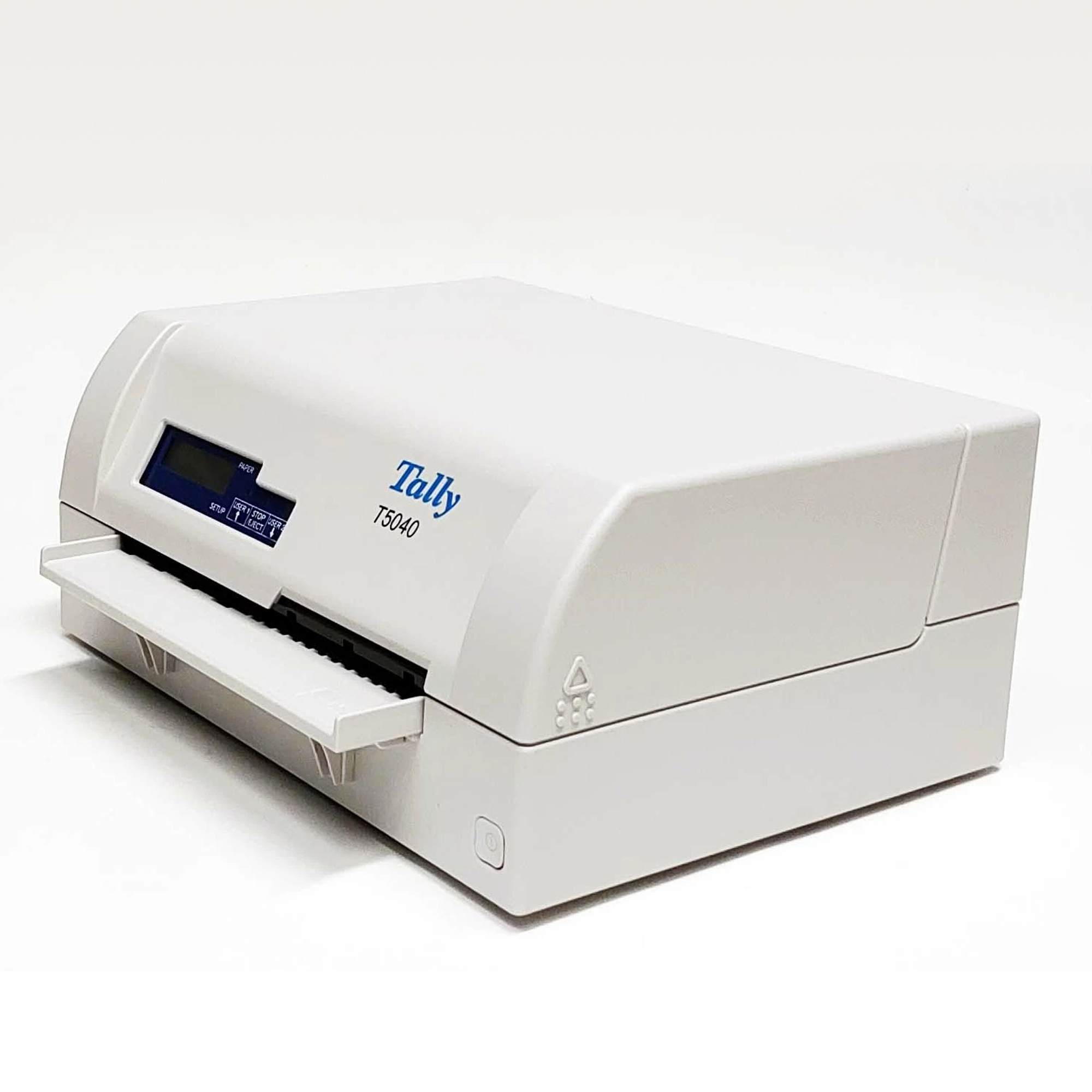

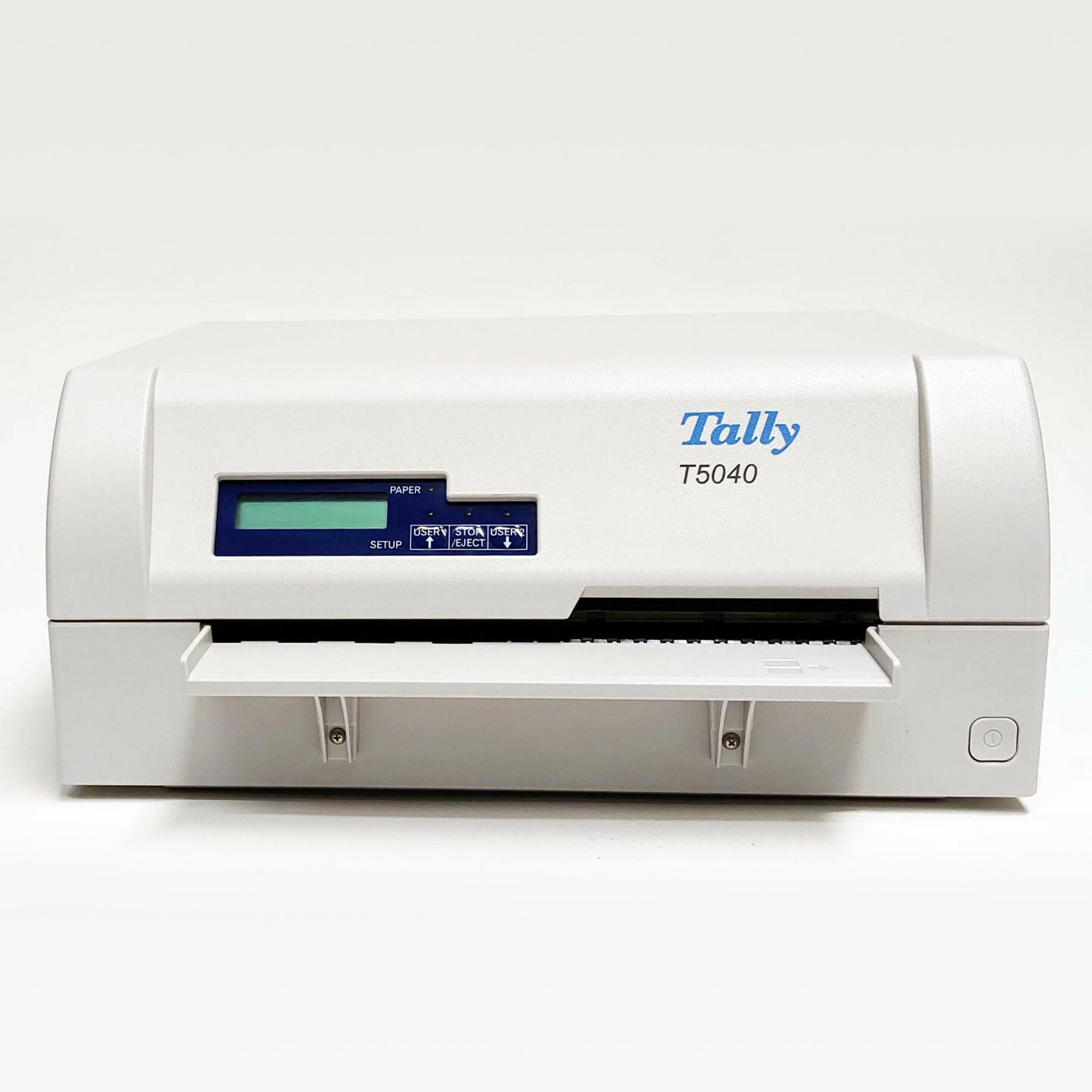

Tally Dascom T5040
Product Description
With up to 600 characters per second, the T5040 rapidly processes media of diverse types ranging from passbooks and cheques to A5 receipts and A4 information sheets.
The printer‘s flatbed design provides totally assured paper handling, and with advanced features such as Automatic Paper Alignment and Auto Gap Adjustment (AGA), they offer unsurpassed ease-of-use. Using Serial Impact technology – the most reliable and versatile method available of producing print – the T5040 is a durable, robust, dependable printer that supports a wide range of printing applications.
The standard T5040 supports cut forms via a serial interface connection and a secure command language, as demanded within the banking environment. As standard, USB and Parallel interfaces are also included for flexibility of connection and multi-user operation. An alternative configuration with a second serial interface is available.
Also available are models with Magnetic Stripe encoding for reading accounts codes directly into the system minimizing user intervention.
Specification
| Print Speed | 600 cps (Fastest Mode); 400 cps (Draft), 133 cps (NLQ) at 10 cpi |
| Print Method | Serial Impact Matrix – 24 pin, Flat-bed |
| Resolution | Up to 360 x 360 dpi |
| Character Sets | IBM PC2 (13 national char sets) ISO 8859-2/-5/-7/-8/-9 additional char sets available from CD ROM |
| Character Density | 5, 10, 12, 15, 16.6, 17.1, 20, 24 cpi |
| Line Density | 1, 2, 3, 4, 6, 8 lpi |
| Printhead Life | 400 million characters |
| Standard Connectivity | RS232, 9 pin D-Sub male connector, USB-2, Parallel Centronics IEEE-1284, 256 kb memory |
| Optional Connectivity | Models with 2nd Serial RS232 interface are available. TGNet Ethernet 10/100BaseT adapters |
| Standard Emulation | Epson LQ (ESCP/2), IBM 4722, Olivetti PR50/PR2/PR2e, IBM ProPrinter XL24e |
| Fonts | Draft, Roman, Sans Serif, Courier, Bold, Prestige, Script, Orator, Gothic, Souvenir, OCRA/B, 10 Barcodes |
| Consumables | Fabric Ribbon: 10 million characters |
| Standard Paper Handling | Cut sheet: Front with auto align, auto load, auto edge & gap detections |
| Number of Copies | 1 + 6 copies * |
| Form Thickness | Up to 2.0 mm |
| Paper Type | Passbooks and cut forms: includes labels, cheques, receipts, invoices, information sheets |
| Paper Weight | 60 -260 g/m2 |
| Paper Size | Width: 105 – 235mm; Length: 125 – 210mm (Passbook); Width:70 – 240mm; Length:70 – 500mm (cut sheet) |
| Physical Weight | < 10Kg |
| Physical Size | (WxDxH) 378 x 280 x 168 mm |
| Power Voltage | 120 V and 220 V models available |
| Power Consumption | max. 73W (printing), 9 W Stand-By |
| Power Frequency | 50/60 Hz |
| Workload | 5,000 transactions per month |
| Drivers | Windows 2000/XP/Vista/7/8/Server 2003/2008 |
| Temperature | +10C -+ 40C |
| Humidity | 15% – 75% |
| Acoustic | Less than 55dB(A) |
| Warranty | One Year with Printhead inclusive |
| Note | * Performance may vary subjected to media use |
 |
 |
 |
