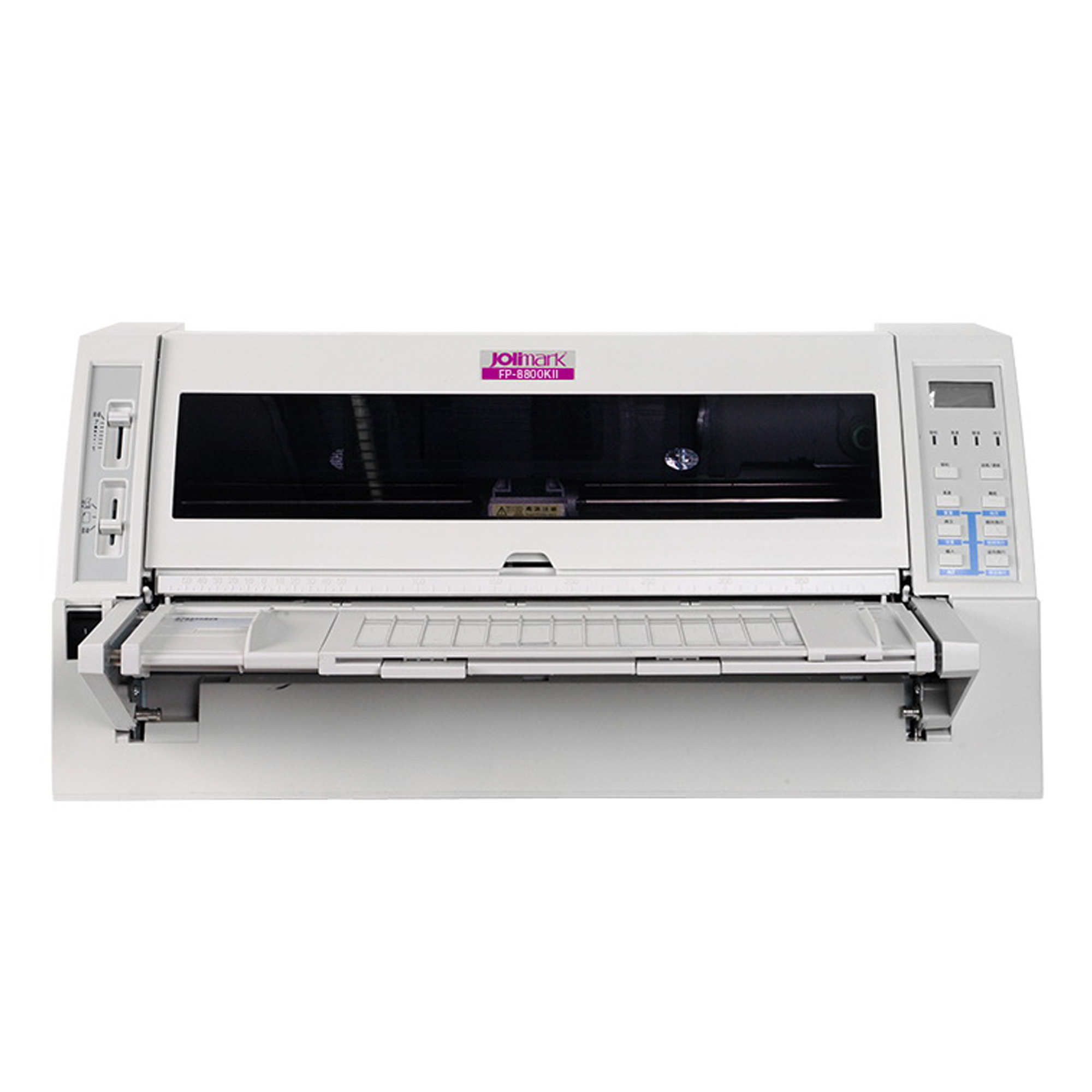

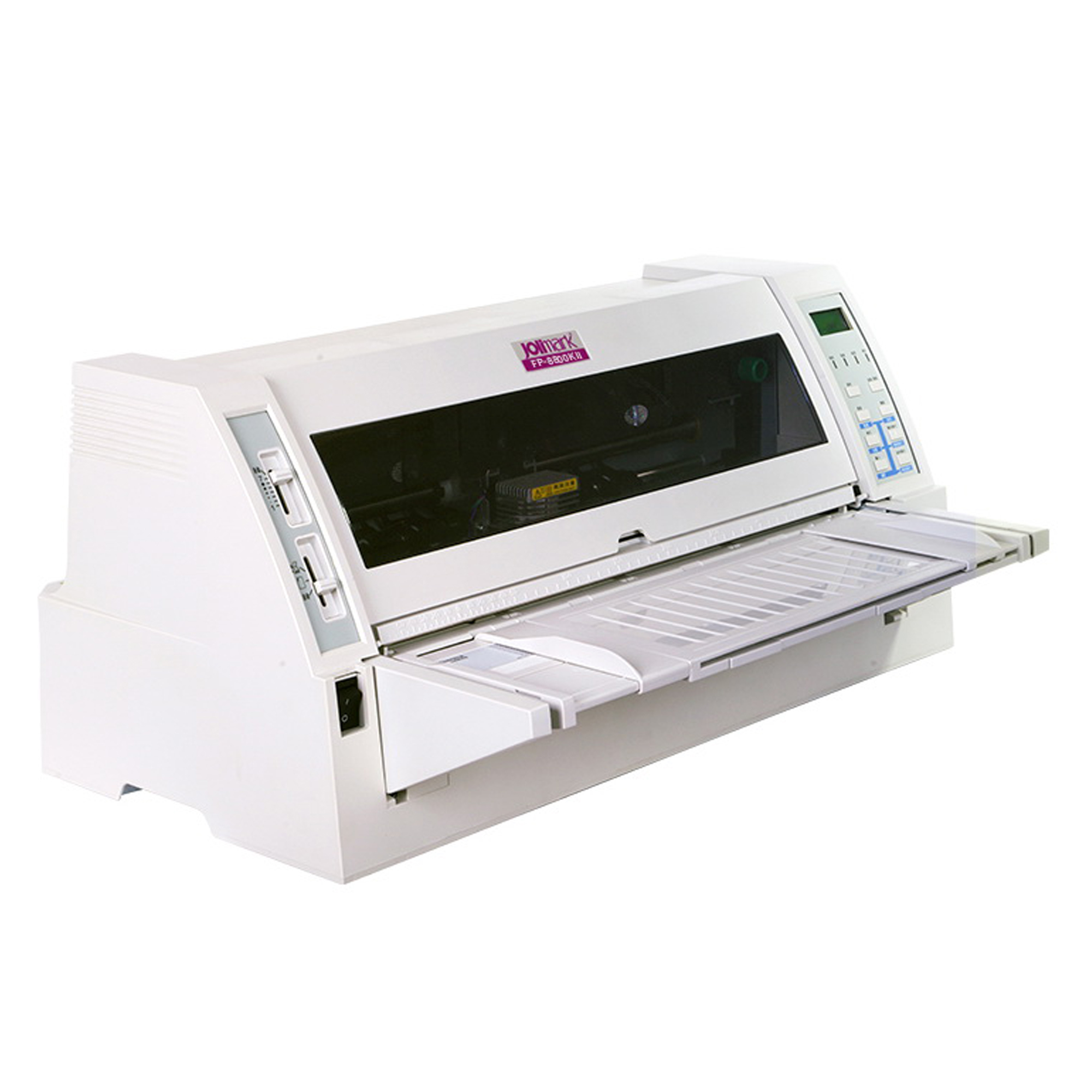

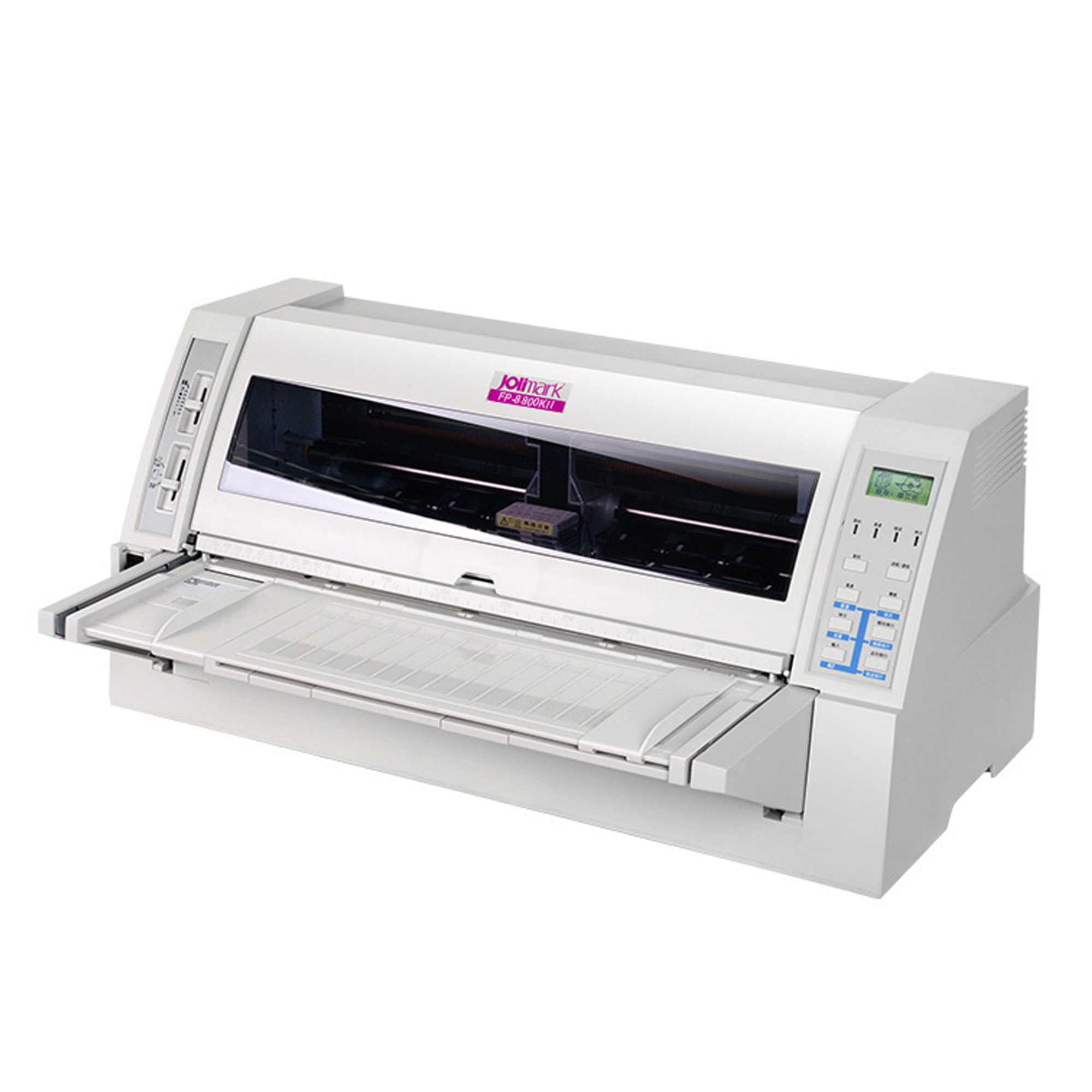

Jolimark FP-8800KII
Jolimark FP-8800KII เป็นเครื่องพิมพ์ดอทแมทริกซ์แบบ Heavy Duty Printer คือเป็นเครื่องพิมพ์ความเร็วสูงที่รองรับการพิมพ์หนัก ๆ เช่นพิมพ์แบบฟอร์มที่มีสำเนาหลาย ๆ สำเนา หรือพิมพ์ติดต่อกันนานๆ ซึ่งเครื่องพิมพ์ Dotmatrix printer ทั่วๆ ไปไม่สามารถรองรับงานประเภทนี้ได้
Jolimark เราคือผู้ผลิต ในประเทศไทยเป็นที่รู้จักเครื่องพิมพ์ AUI FB-630 (เดิมเป็นที่รู้จักกันในนาม Seikosha / Seiko Precision )

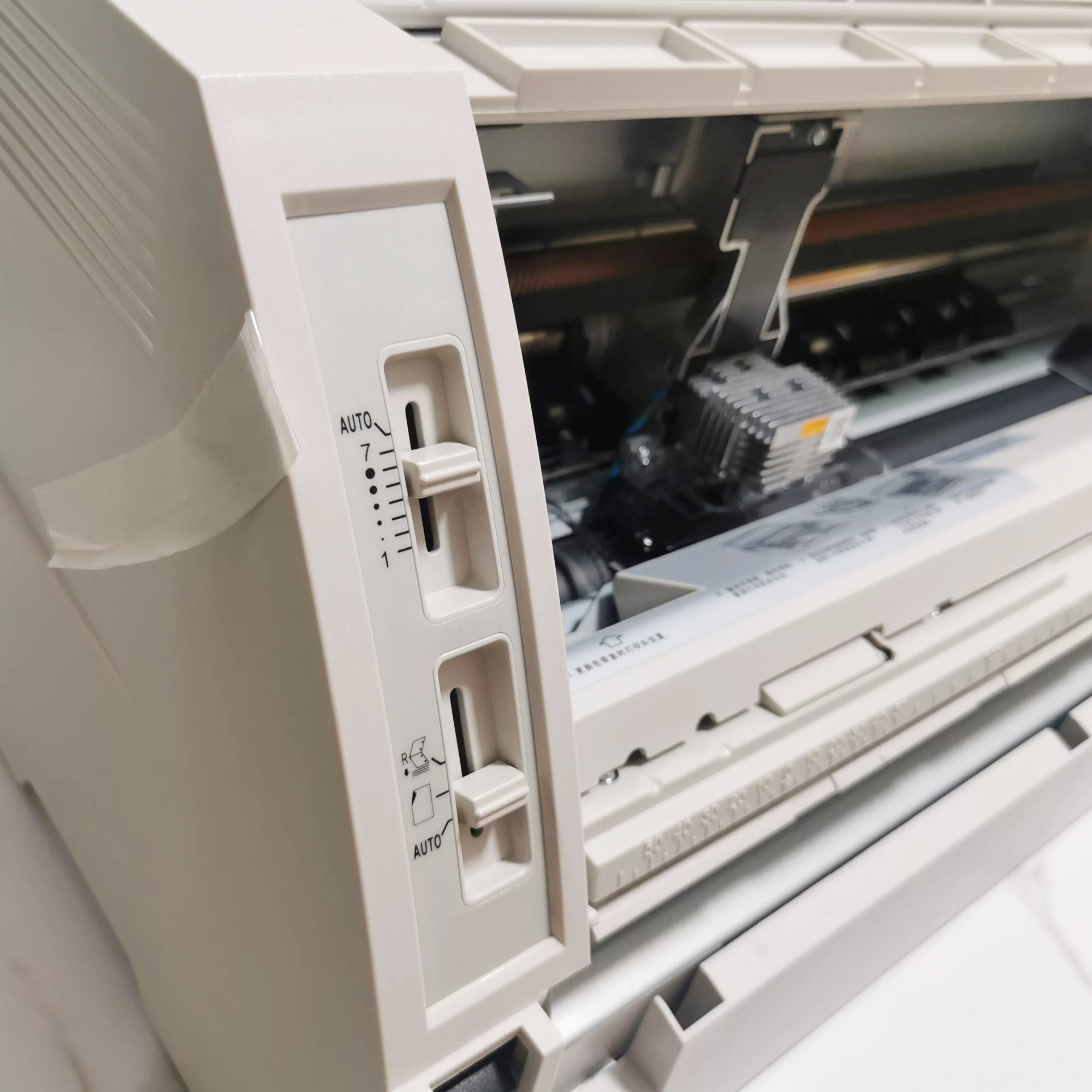

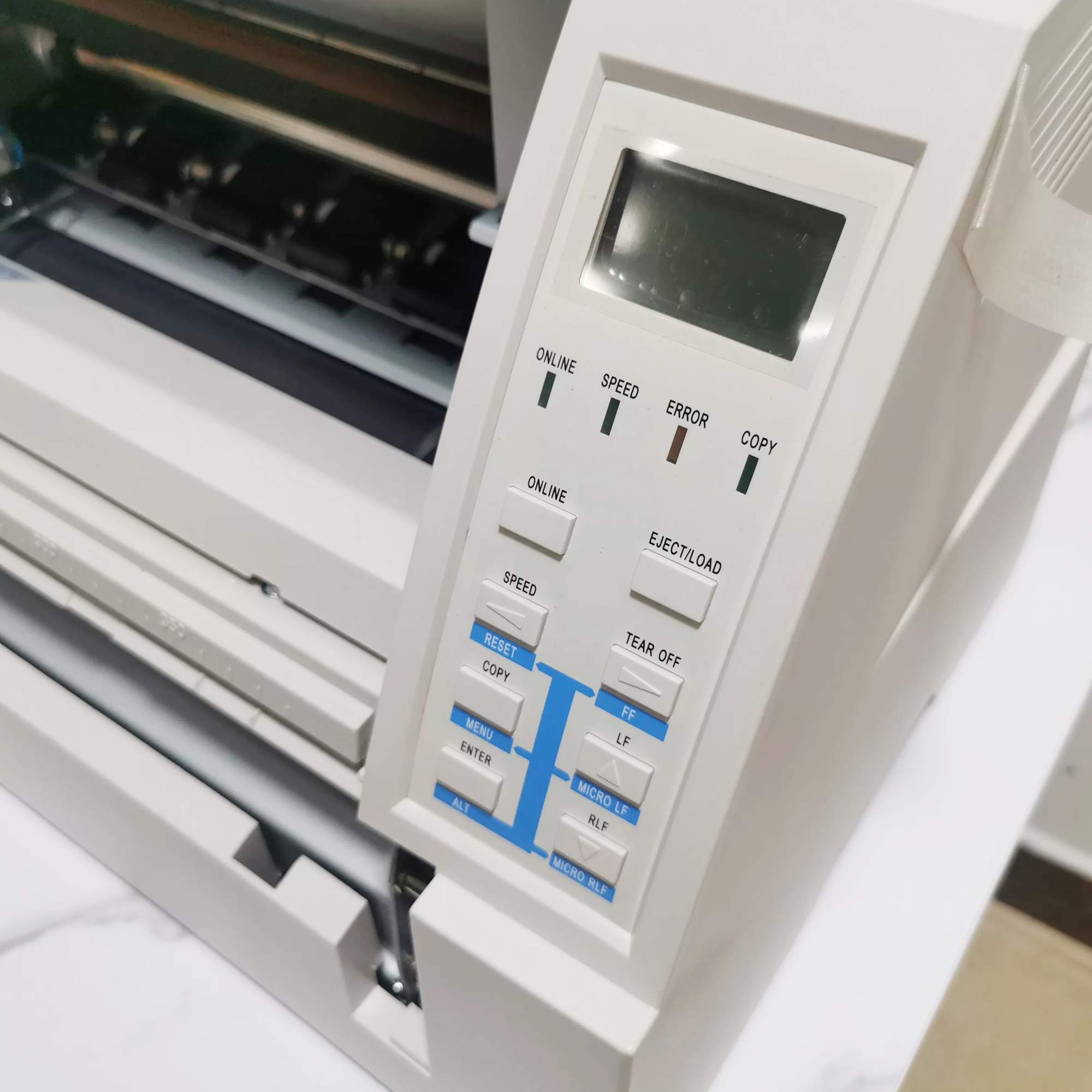

- User-friendly interface, Graphic LCD depicting printer status, and two slide levers with easy access.
- Stable and reliable paper handling, 4RD(4 Roller-shaft Drive) makes sure the form gets through.

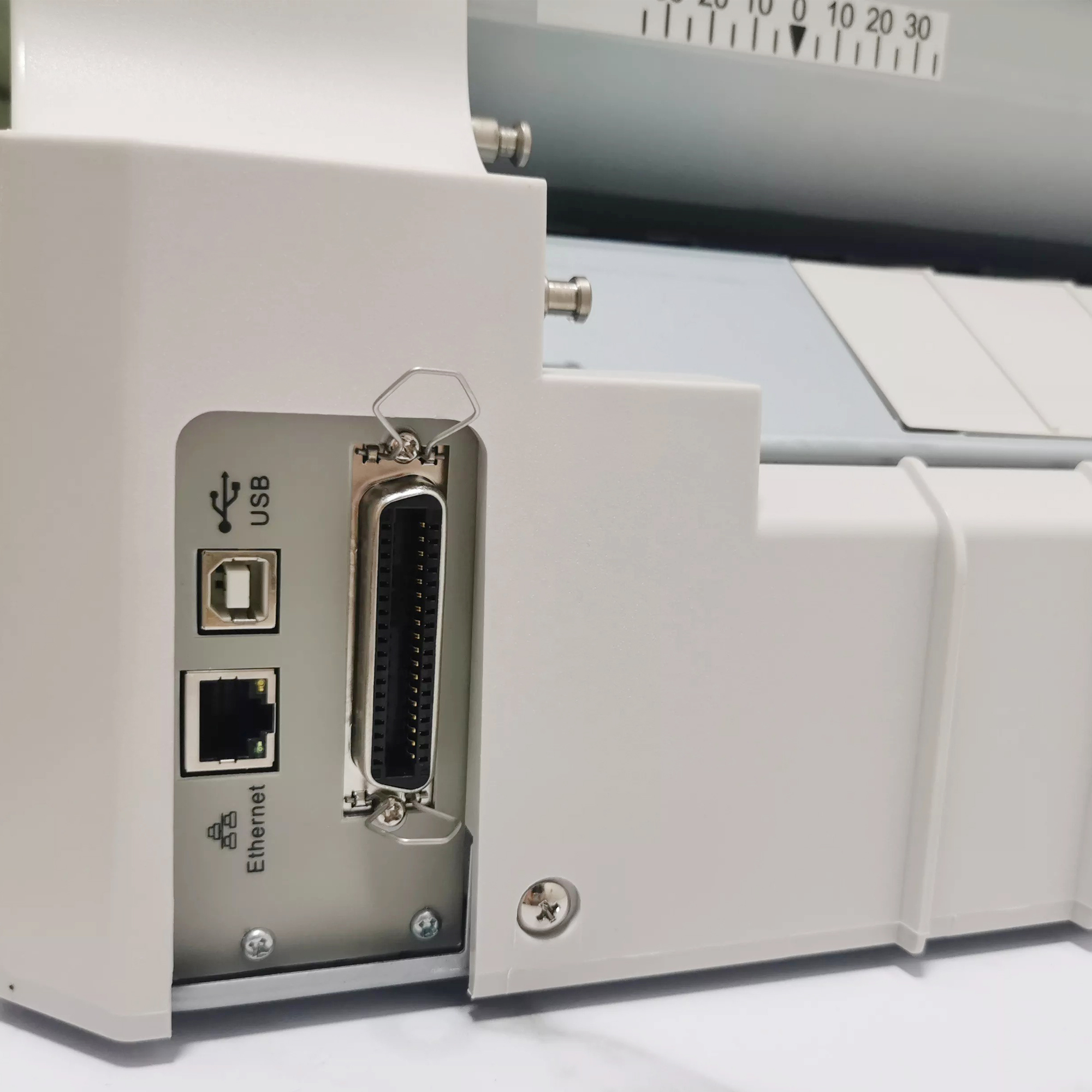

- Enhanced interfaces. Parallel, USB, Ethernet(standard), RS-232C(option)

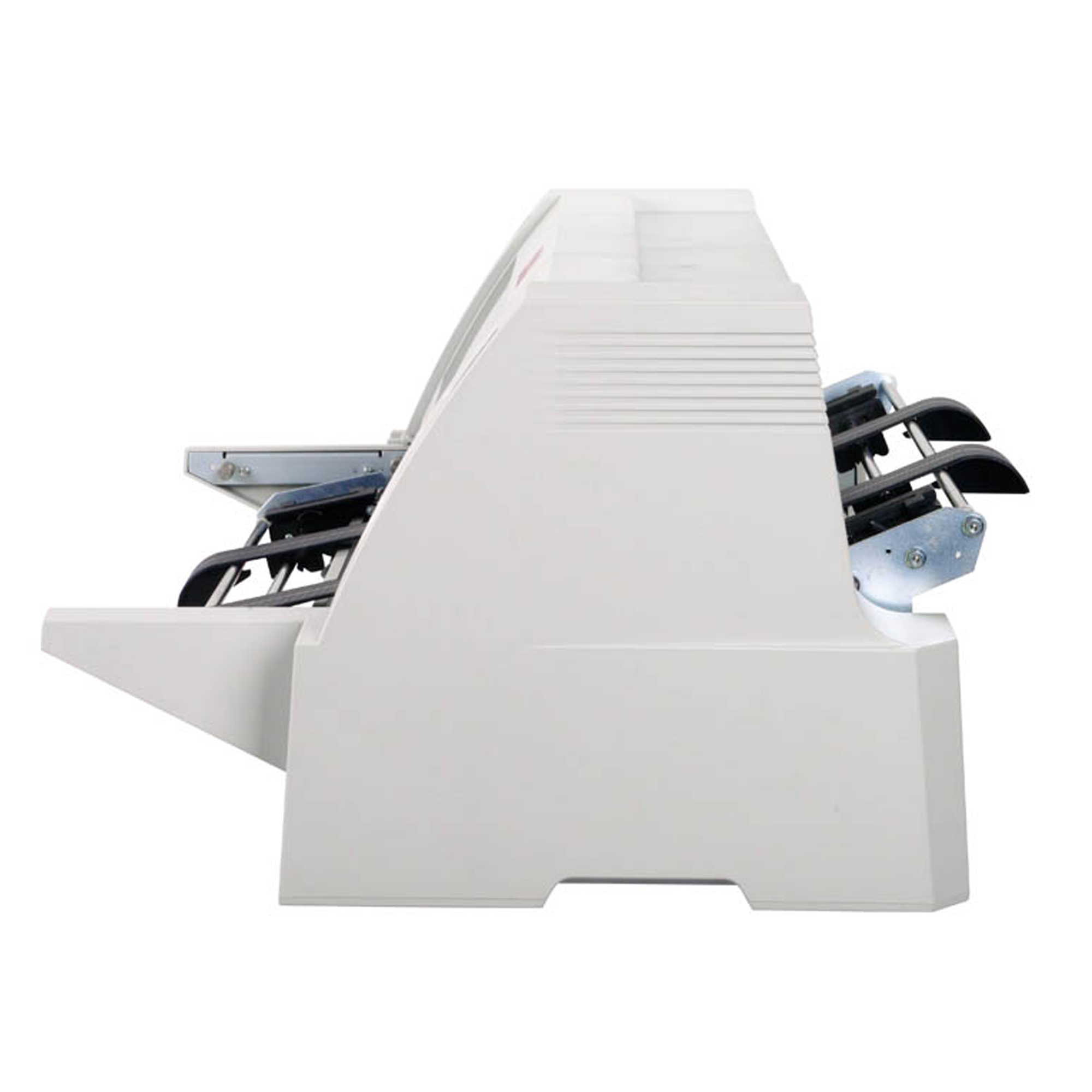

- Printable on a variety of media, Invoices,receips,tickets, and other forms printable with removable tractor unit(front/rear).
- Maximum 2.0mm thickness capability. Accommodates thick cards for mission-critical printing in offices, shops and factories.
คุณสมบัติโดยสังเขปของ Heavy duty printer Jolimark FP-8800KII
| Print type | 24-pin impact dot matrix |
| Print direction | Bi-directional with logic seeking |
| Print Width(10CPI) | 136 Columns / 345.44mm |
| Print speed | 440 CPS (10CPI) 528CPS (12CPI) [Super high speed] 360 CPS (10CPI) 432 CPS (12CPI) [High speed] 240 CPS (10CPI) 288 CPS (12CPI) [Normal] 180 CPS (10CPI) 216 CPS (12CPI) [High density] |
| Print head | Life: 500 million strokes/wire |
| Resolution | 360×360 DPI(Maximum) |
| Character sets | 17 international character sets |
| Fonts | Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-A, OCR-B |
| Bar code | EAN-13, EAN-8, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 128 B, Code 128 C, NW-7 |
| Character pitch | 10CPI, 12CPI, 15CPI, proportional |
| Line space | 1/6 inch, 1/8 inch, programmable in 1/360 inch increments |
| Emulation | EPSON ESC/PK2, IBM 2391 |
| Interface | Standard:[USB2.0][Parallel][Ethernet] Options:[Serial] |
| Buffer Memory | 132KB |
| Ribbon | Model:JMR106 Life(draft mode):> 20 million characters |
| Noise | <58dB(A)(ISO7779 standard) |
| Paper feed type | Cut sheet: front in, front out Tractor paper: rear in, front out |
| Paper specification | Cut sheet: Width: 127~430mm Tractor paper:Width: 127~406mm |
| Max paper thickness | 2.0mm |
| Copy | Original+6 copies |
| Function | LCD display Automatic gap adjustment Automatic document alignment Automatic paper edge detection |
| Dimension (W×D×H) | 635mm × 335mm × 294mm |
| Weight | Approx. 22Kg |
| Environmental conditions | Operating:Temperature: 5~40℃, Humidity: 25%RH~80%RH(No condensation) Storage：Temperature: -40~55℃, Humidity: ≤93%RH(40℃, No condensation) |
| Power requirements | Rated voltage:198~242V or 100~110V Rated frequency range:50~60Hz |
| Safety marks | GB 4943.1 / EN60950 |
| Certificate | DNV ISO14001, BSI ISO9001, OHSAS 18001, EN60950 |
| Note | 1. The technical specifications in this catalog are the laboratory measurement data which achieved under the national standard for the storage and work environment (room temperature), the specifications of the testing papers are specified in the Users’ Manual. 2. The technical specifications are subject to change without notice. 3. All trademarks are the properties of their respective holders. |
 |
 |
 |
